GN 722.5-E-ZB

Spring indexing plungers with ring or lever

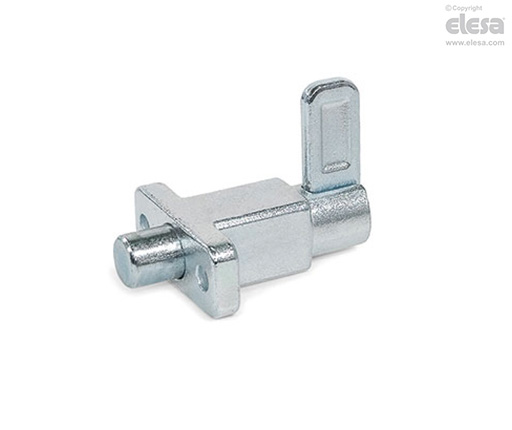

With lever, with rest position, passivated zinc-plated steel

Features and applications

In the GN 722.5 spring indexing plungers the plunger pin is actuated by the pull ring or lever. This operation is performed manually, with a cable or by means of a pulling hook in the versions with pull ring. The dimensional tolerances between the tip and the guide body are chosen in order to guarantee functional reliability even in applications of approximate dimensions or in the event of contamination. The hexagonal mounting holes allow the use of socket cap screws and hexagon screws or nuts.
