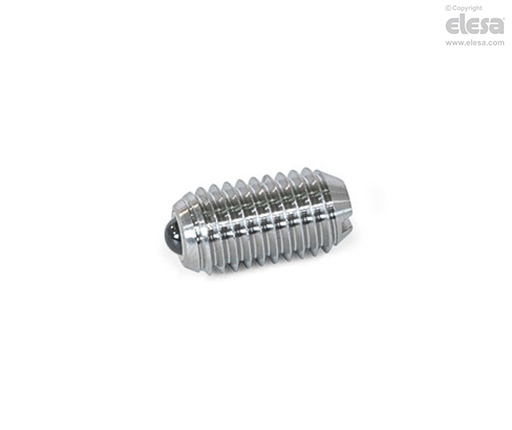

GN 615.10
Spring plungers
Stainless steel, with ceramic ball, with friction bearing, with slot
Main specifications
Versions
- Type KN: normal end-force spring
- Type KSN: heavy end-force spring
Body
Stainless steel
Ball
Ceramic
Silicon nitride, black
Spring
Stainless steel
Friction block bearing
Technopolymer
Max. working temperature
-30 °C to +90 °C
Information
Information
Spring plungers GN 615.10 are used for locking as well as for push-on and push-off functions.
The ball moves freely within a plastic friction bearing, allowing objects to roll along the ball.
Due to the selection of materials, the spring plungers are suitable for use in highly corrosive environments. In addition, the ceramic ball and the plastic friction bearing are low wearing, anti-magnetic and electrically insulating.
