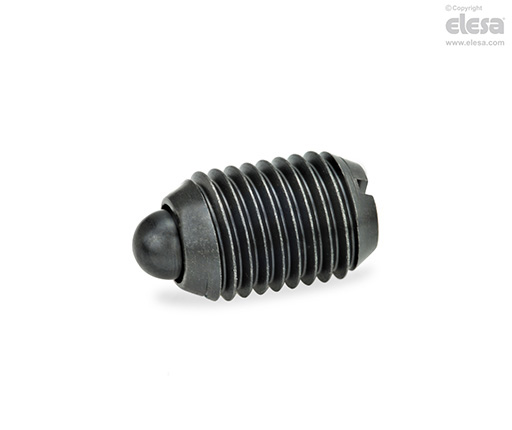

GN 615.1 Bolt spring plungers

Steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Threaded body

Black-oxide steel, screwdriver slotted head.

Standard executions

  • GN 615.1-B: hardened steel bolt, hardened steel spring with normal end-force.
  • GN 615.1-BS: hardened steel bolt, black-oxide steel spring with heavy end-force.
Other executions

Special executions on request

  • GN 615.1-B-MVK, GN 615.1-BS-MVK: thread locking by means of micro-encapsulated red patch (see Technical data).

Working temperature: from -40°C to +170°C.

  • GN 615.1-B-PFB, GN 615.1-BS-PFB: thread locking by means of polyamide blue coating (see Technical data).

Working temperature: from -50°C to +90°C.
