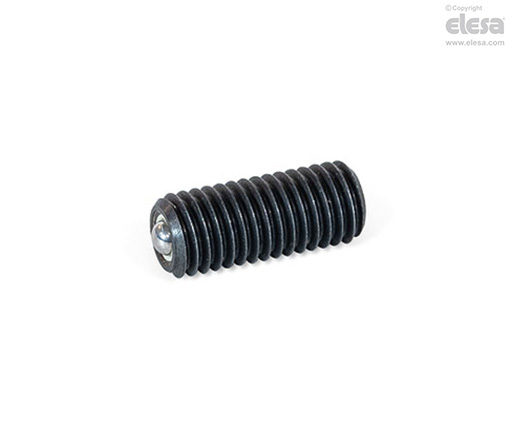

GN 509.11
Ball transfer units
Steel or stainless steel, with external thread, with friction bearing
Main specifications
Body
- Steel, blackened ST
- AISI 303 stainless steel NI
Ball
- Steel AISI 52100, hardened for ST
- Stainless steel AISI 420C, hardened for NI
Friction bearing
Technopolymer
Max. working temperature
-50 °C to +90 °C
Information
Information
Ball transfer units GN 509.11 are used for building mechanisms and devices. The friction bearing of the ball ensures low-friction displacement and rotation of workpieces in any direction.
The position of the ball transfer units can be adjusted in the axial direction using the external thread.
