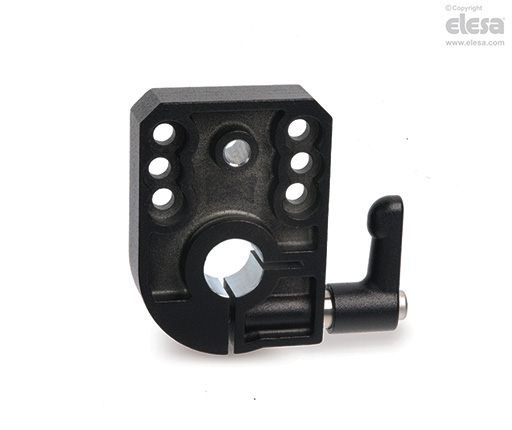

BSA-N52 (inch sizes) Bases for spindle locking

for DD52R position indicators, zinc alloy

Select item

Technical specifications

Scroll horizontally

Main specifications
General Information

Main specifications

Material

Die-cast zinc alloy bases for spindle locking, epoxy resin coating, black colour, matte finish.

GN 302.1 adjustable handle with lever body in die-cast zinc alloy, black color and AISI 303 stainless steel clamping element.

General Information

Features and applications

BSA-N52 locking bases allow an easy and quick locking of the spindles after their positioning. DIA 0.24 (Ø 6.1 mm) hole to fit the referring pin of the indicator. Handle position either on the right or on the left. Fitting to the machine by means of two M5 cylindrical-head screws (not included in the supply).
