GN 614.6
Bolt spring plungers
Smooth body, steel or stainless steel
Main specifications
Standard executions

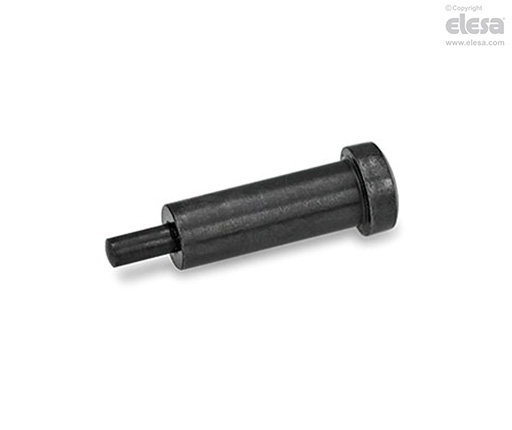

- GN 614.6-K: black-oxide steel body, plunger in case-hardened and black-oxide steel.
- GN 614.6-KN: AISI 303 stainless steel body, nitrated AISI 303 stainless steel plunger.
Spring
AISI 631 stainless steel normal end-force spring.
General information
Features and applications
GN 614.6 bolt spring plungers are mainly used in the production of tools such as spring stops as well as for their pressure and blocking functions.
Suggested tolerance for plunger housing hole = H7.
