GN 136-A4 Hinges

AISI 316 stainless steel sheet.

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

Stainless steel AISI 316:

  • GN 136-A4-B: holes for cylindrical-head screws.
  • GN 136-A4-C: holes for countersunk head screws.
General information

Rotation angle (approximate value)

Max 280° (-100° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

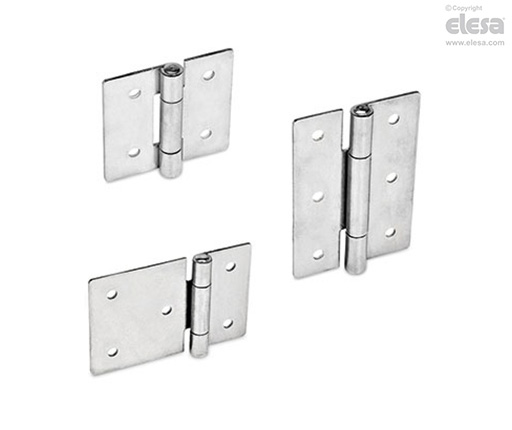

GN 136-A4-B - Holes for cylindrical-head screws
