GN 5334.13 Lobe knobs

with retaining chain or retaining cable, stainless steel

Technical datasheet

Select type

GN 5334.13-A (d<sub>2</sub>)

GN 5334.13-A (d₂)

With bushing, only with retaining ring

GN 5334.13-H (d<sub>2</sub>)

GN 5334.13-H (d₂)

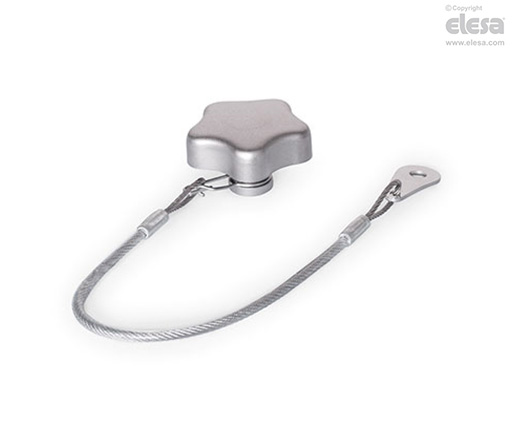

Lobe knobs

With bushing, with retaining cable

GN 5334.13-K (d<sub>2</sub>)

GN 5334.13-K (d₂)

With bushing, with ball chain

GN 5334.13-A (d<sub>2</sub> - l)

GN 5334.13-A (d₂ - l)

With threaded stud, only with retaining ring

GN 5334.13-H (d<sub>2</sub> - l)

GN 5334.13-H (d₂ - l)

With threaded stud, with retaining cable

GN 5334.13-K (d<sub>2</sub> - l)

GN 5334.13-K (d₂ - l)

With threaded stud, with ball chain

Select item

Technical specifications

Scroll horizontally

Main specifications
General information
On request

Main specifications

Types

Type A: only with retaining ring

Type H: with retaining cable

Type K: with ball chain

Knob

Stainless Steel AISI 316L (A4)

Hub welded

Sand-blasted matte finish.

Threaded stud / Bushing

Stainless Steel AISI 304

Retaining cable GN 111.6 (Type A).

Stainless Steel AISI 301

Ball chain GN 111.5 (Type K).

Stainless Steel AISI 301

Retaining cable GN 111.2 (Type H).

Stainless steel

coated with clear plastic

General information

Features and applications

Stainless Steel-Star knobs GN 5334.13 can be captive-attached to a base element with the help of a ball chain or a retaining cable. The star knobs are supplied ready assembled (with retaining ring and ball chain or retaining cable).

On request

On request

Ball chains / Retaining cables with other lengths

with spiral retaining cable GN 111.4.

other GN / DIN standards with retaining chain or retaining cable.
