TP-C-LP Push-fit plugs

with retaining chain, fill symbol, technopolymer

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Polyamide-based (PA) technopolymer, black colour RAL 9005, matte finish.

Elastic fork

Acetal-based technopolymer (POM), black colour.

Packing rings

Two NBR synthetic rubber O-rings.

Retaining chain

Ball cable and coupling heads in acetal resin based (POM) technopolymer, black colour.

NERINOX treated stainless steel ring with two coils.

Head fastening by means of a self-tapping screw ø4.8 mm UNI EN ISO 7050 or a M5 countersunk-head screw UNI EN ISO 10642.

Standard executions

  • TP-C-LP: without side hole.

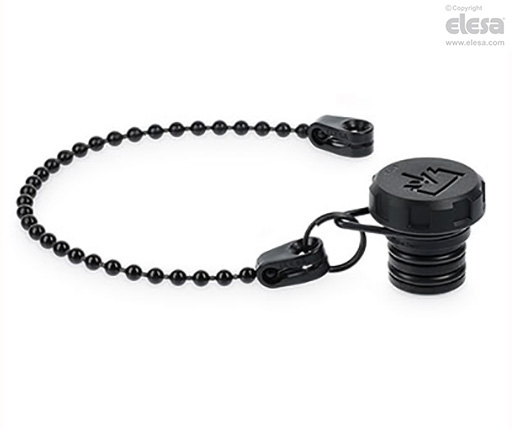

  • TP-CF-LP: with side breather hole.

Maximum continuous working temperature

60°C.

Graphic symbol "fill"

According to DIN regulations.

Mounting

Push-fit avoids the need to screw/unscrew.

General information

Features and applications

The elastic fork, housed in the special groove of the cap, can rotate freely. The spiral ring connects the fork to the chain.

Suitable for use when it is necessary to avoid the loss of the cap.

Other executions

Special executions on request

  • Chain in different lengths.
  • Cap with retaining cable CV-T   in polyethylene black colour.
