M.1043-SCM-SST
Tubular Handles
with intermediate shank, technopolymer and stainless steel
Main specifications
Handle shanks
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. Supplied assembled. The handle shank connection to the tube avoids tube rotation.
Intermediate shank
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. Supplied assembled.
Headless screw with hexagon socket for fixing the support to the AISI 304 stainless steel tube.
Slotted pass-through hole with slot for cylindrical or hexagon head screws.
Tube
AISI 304 stainless steel.
Standard executions
- M.1043-SCM-SST: pass-through holes for cylindrical-head screws with hexagon socket.

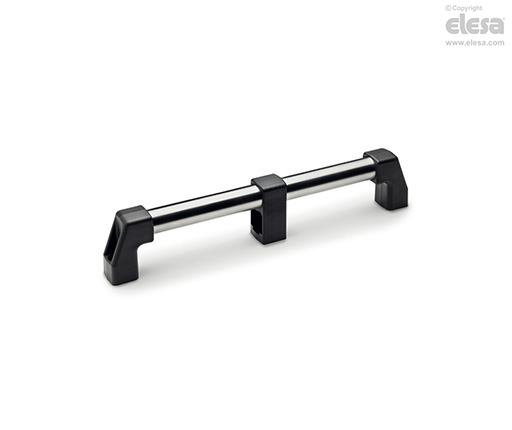

- M.1043-SCM-BM-SST: brass bosses, threaded blind holes.
General information
Technical data
Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
