GN 30B
Brackets
Aluminum, for Aluminum Profiles (B-Modular System), with or without Accessory
Main specifications
Types
- Type A: without accessories
- Type C: with fastening set and cover cap

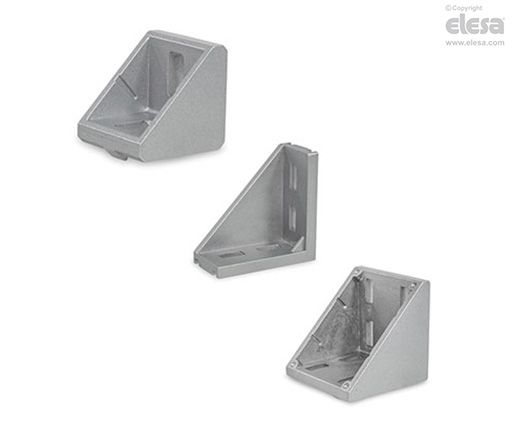

Angle bracket
Aluminum
- Painted white AW
- Plain finish AB

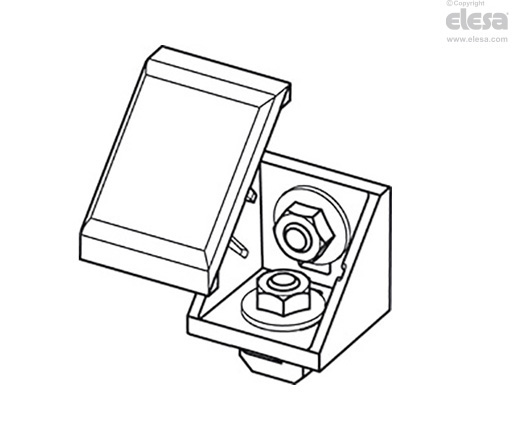

Fastening set (only for Type C)
- T-slot nut and socket cap screw (for n = 8)
- T-slot bolt and collar nut (for n = 10)
Steel, zinc plated (only for Type C) SZ
Blue / yellow passivated
Cover cap (only for Type C)
Polyamide based (PA) technopolymer
Black S
General information
Features and applications

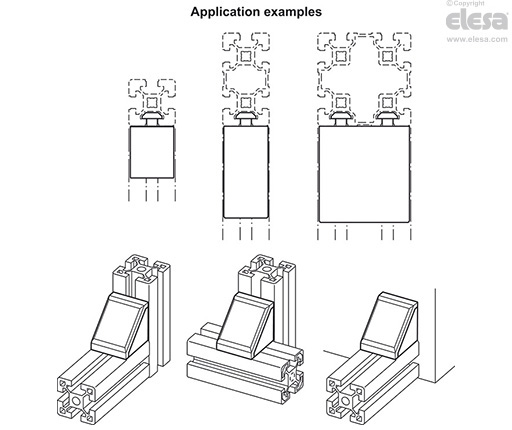

Angle brackets GN 30B fasten aluminum profiles to objects such as tables and panels or at right angles to each other. Machining of the profile is not necessary.
The connection can be freely positioned and slid along the slot. To fasten the angle brackets to a panel or transversely to an aluminum profile, the guide steps must be broken off.
The cover caps ensure a visually appealing appearance and simplify cleaning (type C).
