GN 612.2 Locking indexing plungers

rest in retracted position, steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Body

Black-oxide steel.

Plunger

Nitrided steel.

Suggested tolerance for matching hole = H7.

Lever

Black-oxide steel.

Lever cover

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • GN 612.2-A: without lever cover.

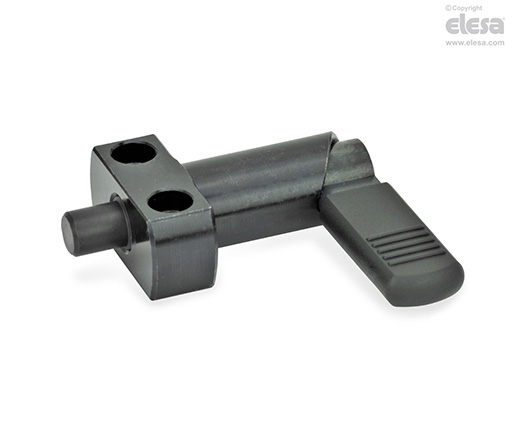

  • GN 612.2-B: with lever cover.
General information

Features and applications

GN 612.2 indexing plungers are used when the plunger must be retracted quickly.
