GN 614.1 Holders for smooth plungers

Zinc alloy

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Nickel-plated die-cast zinc.

Standard executions

  • GN 614.1-B: two-side fixing wings.
  • GN 614.1-L: left-side fixing wing with positioning pin.
  • GN 614.1-R: right-side fixing wing with positioning pin.
General information

Features and applications

GN 614.1 holders for spring plungers optimise the use of smooth ball spring plungers GN 614 and GN 614-NI.

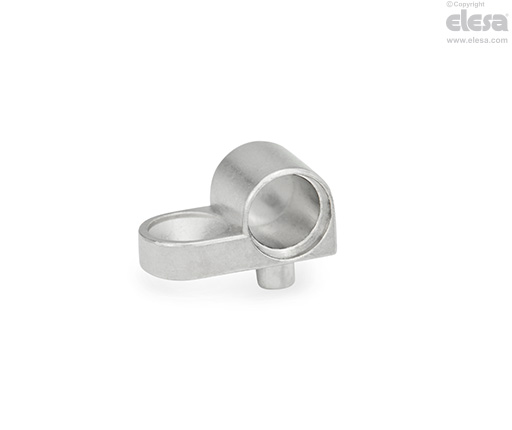

GN 614.1-L - Left-side fixing wing with positioning pin
