IRS.802
Safety fold-away handles
Technopolymer
Main specifications
Material
High-resilience polypropylene based (PP) technopolymer handle, black colour, matte finish.
Standard executions
- IRS.802: black-oxide steel double guide pin, sintered and oxidised steel flat base for embedded mounting, black-oxide steel screw.

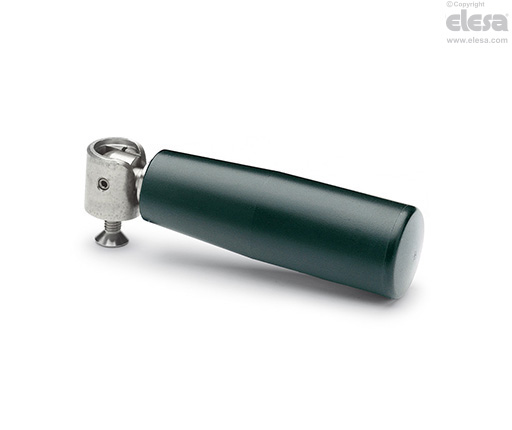

- IRS.802-SST: AISI 303 stainless steel double guide pin, sintered AISI 303 stainless steel flat base for embedded mounting, AISI 303 stainless steel screw.
General information
Features and applications
Handle pivots freely during operation: a system of coaxial bushings compensates return spring load.
The safety fold-away handle is provided with a special return mechanism "Fold-O-matic®" which automatically folds the handle into the retracted position when the operation has been completed. A light pressure on the handle in the direction of the handwheel axes is enough to bring it in the operation position allowing the operator to turn the handwheel freely.
