GN 818 Indexing Plungers

with or without rest in retracted position, AISI 316 stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Types

  • Type B: without rest position, with Plastic-Knob, without lock nut
  • Type BK: without rest position, with Plastic-Knob, with lock nut
  • Type BN: without rest position, with Stainless Steel-Knob, without lock nut
  • Type BKN: without rest position, with Stainless Steel-Knob, with lock nut
  • Type C: with rest position, with Plastic-Knob, without lock nut
  • Type CK: with rest position, with Plastic-Knob, with lock nut

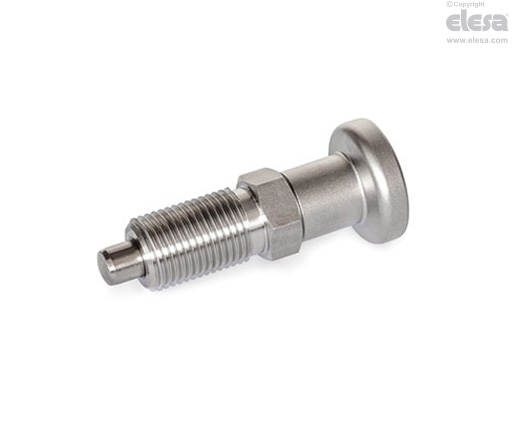

  • Type CN: with rest position, with Stainless Steel-Knob, without lock nut
  • Type CKN: with rest position, with Stainless Steel-Knob, with lock nut

AISI 316 stainless steel     A4

Plunger pin chemically nickel plated

Knob

Plastic (Type B / BK / C / CK)

Polyamide (PA)

black, matte

Stainless Steel (Type BN / BKN / CN / CKN)

AISI 316

not removable

Spring

Stainless Steel AISI 316Ti

General information

Features and applications

GN 818 Stainless Steel-Indexing plungers are set apart by the materials used, allowing these plungers to withstand particularly corrosive environments. Indexing plungers with a rest position are used for such applications where the plunger has to stay in its retracted position. In that case, the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.
