GN 514
Indexing Plungers
with locking device, steel
Main specifications
Threaded body
Black-oxide, sandblasted, nitrided steel.
Plunger
Nitrided steel.
Suggested tolerance for matching hole = H7.
Locking nut
Black-oxide steel.
Control push button
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions

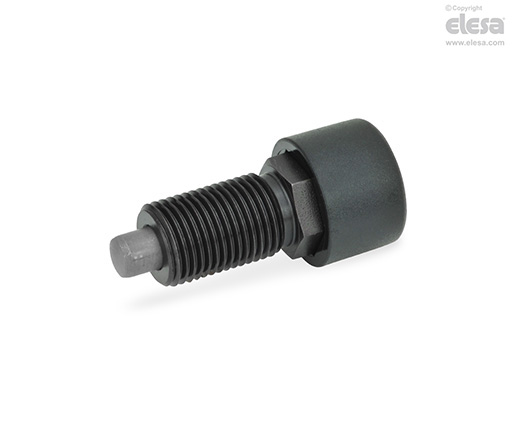

- GN 514-A: without locking nut.
- GN 617-AK: with locking nut.
General information
Features and applications
GN 514 indexing plungers base their operation on the cardiod mechanism.
This type of mechanism allows the plunger to stay in the extended or retracted position by simply pushing the control button (PUSH-PUSH locking device).
Accessories
Accessories on request
AISI 303 stainless steel distance bushings GN 609.5 for the assembly of the indexing plunger on thin sheets.
