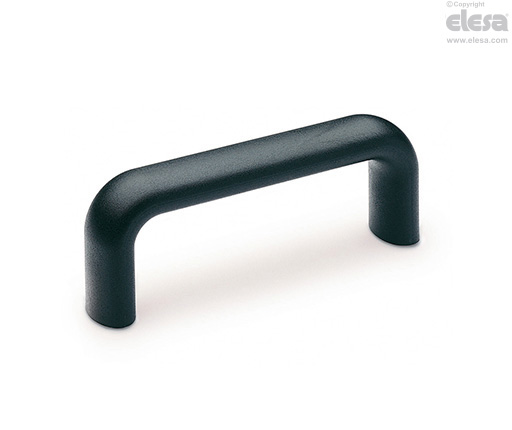

M.643 Bridge handles

Technopolymer

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

Brass bosses, threaded blind holes.

  • M.643: high-resilience polypropylene based (PP) technopolymer, black colour, matte finish.
  • M.643R (reduced version h=45): glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
  • M.643-FM: thigh-resilience polypropylene based (PP) technopolymer, black colour, matte finish. Brass bosses, pass-through holes for cylindrical-head screws with hexagon socket.
General information

Technical data

Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Inch sizes available on request
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
