RE.F7-N-HT Monolithic castor wheels with steel bracket

Duroplast, high temperatures

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Wheel body

Phenolic based (PF) Duroplast monolithic wheel, resistant to temperatures up to 300°C.

Rolling action

Hub with steel and PTFE bosses.

Turning plate bracket

Zinc-plated steel sheet, the bracket is designed to withstand loads up to 2000N. The presence of a double ball race and direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability. Does not require maintenance. It consists of (see Fig.1):

  1. fitting plate: electrolytically zinc-plated steel plate;
  2. fork: electrolytically zinc-plated steel plate;
  3. ball race ring: electrolytically zinc-plated steel plate;
  4. central pin: incorporated in the plate, cold reflanged;
  5. rotation system: dual ball ring, high temperature grease-lubricated;
  6. dust seal: RAL 7015 dark grey technopolymer.

Standard executions

  • SBL: turning plate bracket, without brake.
  • FBL: turning plate bracket and centre pass-through hole, without brake.

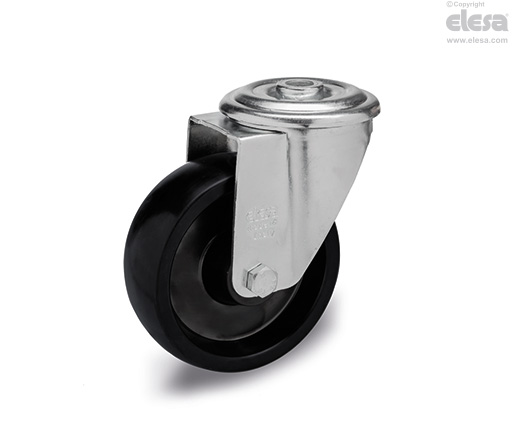

RE.F7-FBL-N-HT - Turning plate bracket and centre pass-through hole, without brake, steel
General information

Applications

Being resistant to high temperatures, RE.F7-N-HT castor is particularly suitable for use in food industries and cooking ovens, especially in the baking sector.

Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
