GN 822.7 Mini indexing plungers

with or without rest in retracted position, stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Threaded body

AISI 303 stainless steel.

Plunger

AISI 303 stainless steel.

Spring

AISI 301 stainless steel.

Standard executions

Polyamide based (PA) technopolymer knob, black colour, matte finish:

  • GN 822.7-B: without rest position.
  • GN 822.7-C: rest position by pulling and turning the knob to 30 °.

AISI 305 stainless steel knob, matte finish:

  • GN 822.7-BN: without rest position.
  • GN 822.7-CN: rest position by pulling and turning the knob to 30 °.
General information

Features and applications

GN 822.7 mini indexing plungers are particularly suitable for assembly on thin sheets.

By lifting the knob, the flat faces of the hexagon come out making it possible to screw the threaded body with a hexagonal spanner.

Accessories

Accessories on request

AISI 303 stainless steel distance bushings GN 609.5 for the assembly of the indexing plunger on thin sheets.

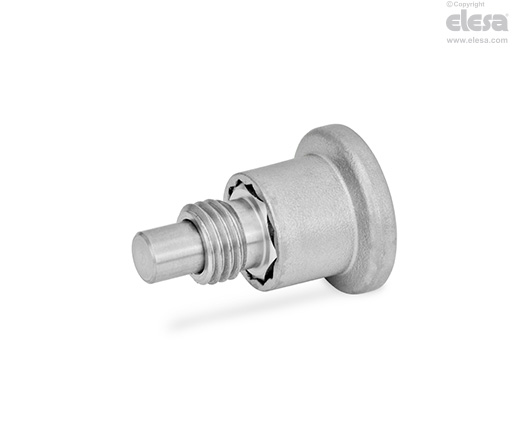

GN 822.7-BN - Without rest position, stainless steel knob
