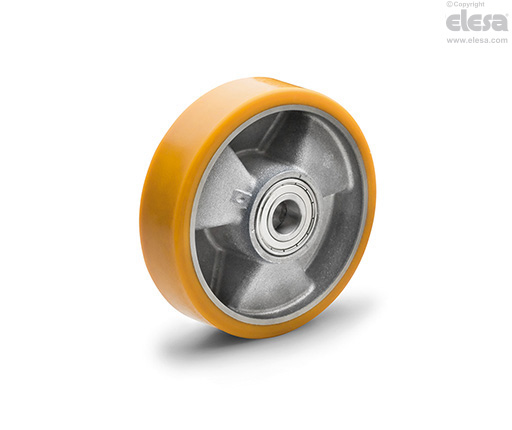

RE.F5 Mould-on polyurethane castor wheels

Applications

Excellent rolling resistance and elasticity features, high wear and tearing resistance.

For selection parameters see Technical data.

RE.F5 wheels are supplied also with bracket:

• RE.F5-N: wheel with steel sheet bracket to be used for light loads.

• RE.F5-H: wheels with steel sheet bracket to be used for medium-heavy loads.

Environmental conditions

Suitable for use in environments with the presence of atmospheric agents, alcohols and glycols, use in environments with the presence of organic and mineral acids, basic solutions and saturated vapour is not recommended.

Rolling resistance - force / load applied

For each load and diameter, the table indicates the force (in N) needed to push or pull a single wheel at a constant speed of 4 km/h on smooth ground.

For manual handling of a 4-wheel trolley, it is recommended to choose diameters with values below 50 N; for frequent handling, choose values below 30 N.

Mechanical moving with towing devices

For mechanical towing, please see the technical specifications to determine the capacity variation.

Temperature

If operating temperatures in an application differ from the standard range of values, please see the technical specifications to determine the capacity variation.
