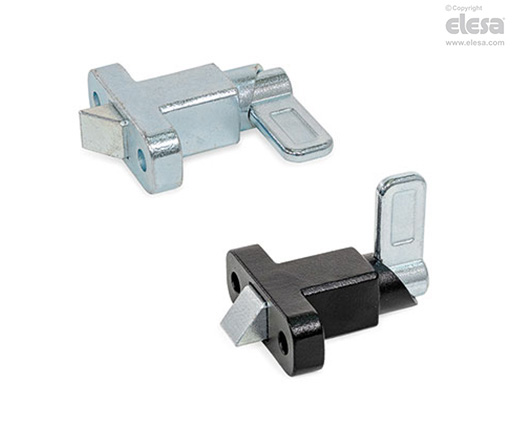

GN 724.2 Locking indexing plungers
Steel, with chamfered pin, with flange for surface mounting
Main specifications
Versions
- Type A: latch arm position perpendicular to the flange
- Type B: latch arm position parallel to the flange
Identification no.
- 1: chamfer, top
- 2: chamfer, bottom
- 3: chamfer, right
- 4: chamfer, left
Guide
Steel precision casting
- Zinc plated, blue passivated ZB
- Zinc plated and powder coated
Black, RAL 9005, textured finish SW
Stainless steel precision casting AISI CF-8 NI
Lever
- Steel precision casting
Zinc plated, blue passivated
- Stainless steel precision casting AISI CF-8
Plunger
- Steel, case-hardened
Zinc plated, blue passivated
- Stainless steel AISI 431, hardened
Spring
AISI 316Ti stainless Steel
General information
Features and applications
Spring latches GN 724.2 have a plunger pin with square cross-section, a latching surface on one side and a chamfer on the other.
The notch at the upper end of the curve causes the latch to be held in place if the plunger pin needs to be kept temporarily from protruding.
The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling. The latching mechanism is pre-lubricated and can be re-lubricated if necessary.
There are several options for fastening. The hex mounting holes allow the use of socket cap screws ISO 4762 and hex head screws or nuts according to DIN 931 or DIN 934.
