TCC-SJB Bases with ball joint
for TCC connecting clamps, technopolymer
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish.
General information
Features and applications
The base may be front mounted using an M5 cylinder head screw with UNI 6592 washer, and rear mounted using an M5 nut which can be bought.
The base with ball joint is designed to be mounted on TCC clamps.
A bushing with spherical seats must be used for each base TCC-SJA, not supplied.
Technical data
The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the recommended torque of 5 Nm.
The ball joint can be freely rotated and tilted to a maximum of +/-30 degrees.
Assembly instructions

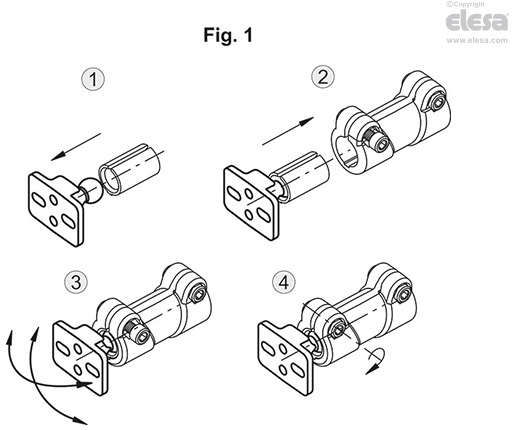

Assembly instructions (fig. 1)
- Force the ball joint into one end of the bushing.
- After loosening the clamping screw, insert the bushing inside the clamp until it snaps in.
- Turn the joint to the desired position.
- Tighten the screw of the clamp.
We recommend loosening the clamping screw when it is necessary to change the position of the joint.
