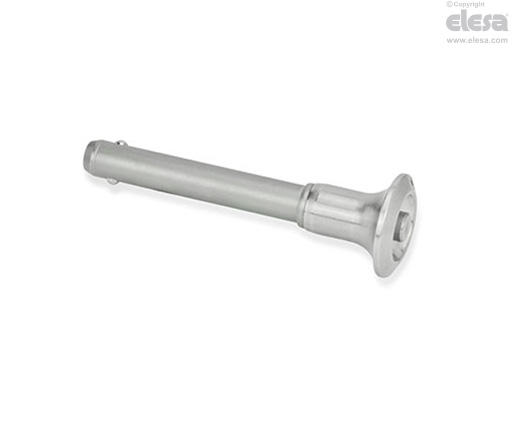

GN 113.10 Ball Lock Pins

Features and applications

GN 113.10 quick release pins are generally used for quick fastenings between components or parts being machined, particularly when they must be frequently repositioned.



Accessories on request

To optimise the use of these ball lock pins, have been designed:

• GN 111: ball chains;

• GN 111.2: retaining cables;

• GN 111.4: spiral retaining cables.

Special executions on request

Other dimensions.

Instructions of use

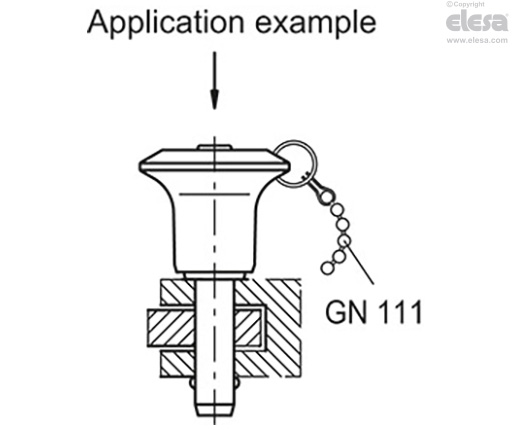

Insert the quick release pin into the hole of the two parts to be locked, holding down the button that releases the two balls. To unlock the two parts, press the button which releases the balls and allows the quick release pin to be removed.
