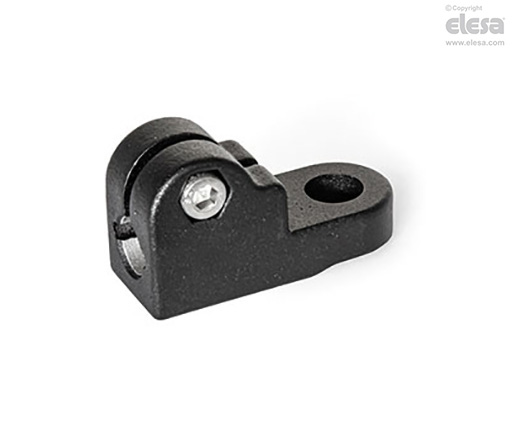

GN 275.4 Sensor holders
Aluminum
Main specifications
Main specifications
Aluminum
Epoxy resin coating
Black, RAL 9005, textured finish SW
Socket cap screws DIN 912
Stainless Steel AISI 304
Hex nuts DIN 985
Stainless Steel AISI 304
Self-locking via polyamide ring
General information
Features and applications
The clamping bore of the sensor holders GN 275.4 is mechanically machined and designed for construction tubes GN 990 .
At the screw location z, the socket cap screw reduces the bore cross-section for clamping.

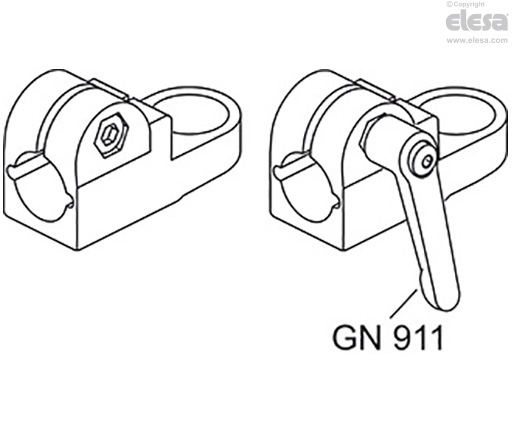

For clamping without tools, the socket cap screw can be replaced by an adjustable lever GN 911 .
