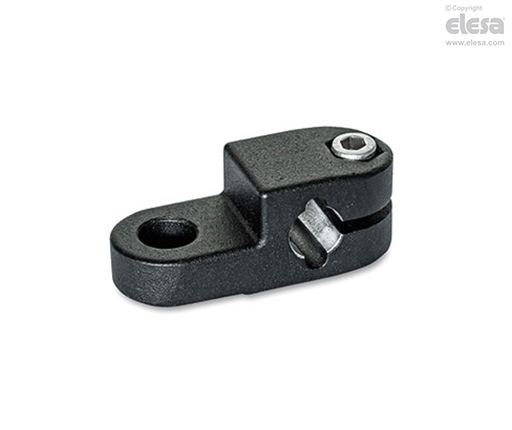

GN 277.4 Device clamps
Aluminum
Main specifications
Main specifications
Aluminum
Epoxy resin coating
Black, RAL 9005, textured finish SW
Cylindrical-head screw DIN 912
Stainless Steel AISI 304
Hexagon nut DIN 985
Stainless Steel AISI 304
Self-locking via polyamide ring
General information
Features and applications
The clamping bore of sensor holders GN 277.4 is mechanically machined and designed for construction tubes GN 990 .
At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
For clamping without tools, the socket cap screw can be replaced by an adjustable lever GN 911 listed in the table as accessory.
On request
On request
Stainless steel version.
