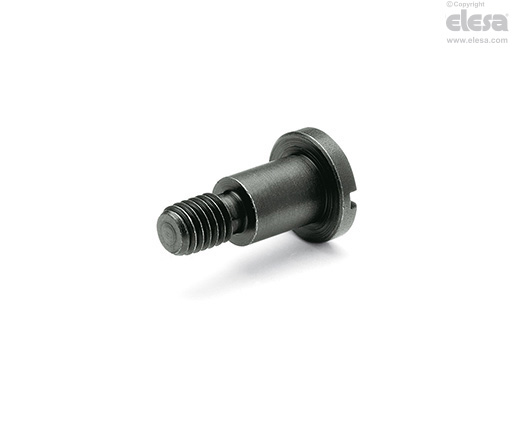

GN 732 Shoulder screws with collar

Steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Turned and black-oxide steel, class 5.8 (tensile strength 500 N/mm²).

General information

Features and applications

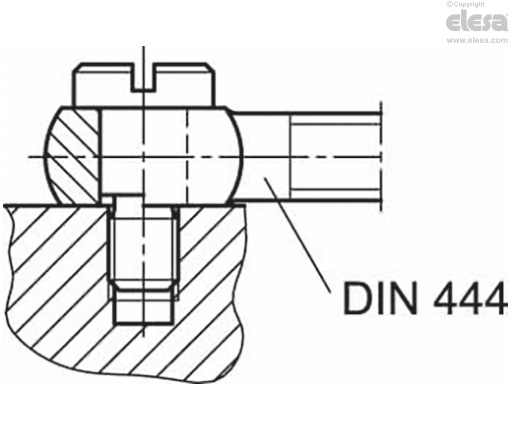

d2 and l1 dimensions can be used with GN 732 shoulder screws together with eye screws DIN 444, eye nuts type GN 444.2 hubs with eccentric cam type GN 919.

GN 732 - Shoulder screws with collar
