GN 6322 Workholding bolt with ball-type shoulder
Steel
Main specifications
Material
Hardened steel.
General information
Features and applications
GN 6322 elements are generally used for positioning and fixing of workpieces.

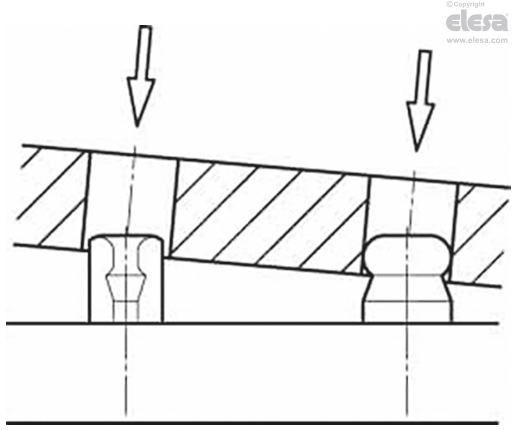

The spherical shape of the head (GN 6322-B) allows an optimal positioning in the holes facilitating their insertion.
The flat design (GN 6322-C) helps to compensate for tolerances in the spacing of two holes.
