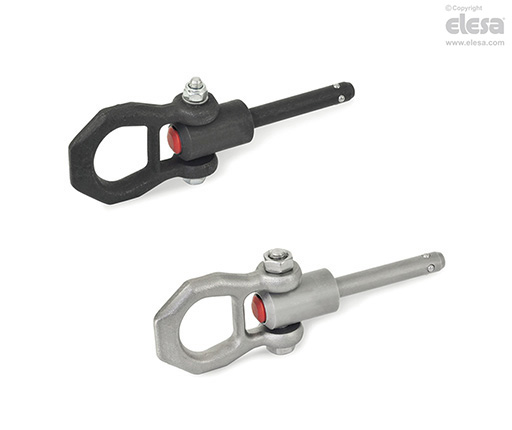

GN 1130 Lifting lock pins
Steel or stainless steel
Main specifications
Standard executions
- GN 1130-ST: pin and lifting ring made out of heat-treated steel, manganese phosphate.
- GN 1130-NI: AISI 630 stainless steel pin, AISI 316Ti stainless steel lifting ring.
Balls and spring
Stainless steel.
Button
Anodised aluminium, red colour.
Hexagonal-head screw and nut
AISI 316 stainless steel.
General information
Features and applications
By pressing the aluminium red button the four locking balls are released and the pin can be removed from the anchoring hole.
Depending on the direction of traction, the lifting pin can move freely 360° with respect to the anchoring hole (tolerance H11).
For optimal positioning of GN 1130 lifting lock pins use fastening bushings GN 1132722.
Further technical information available in "Operating instructions".
