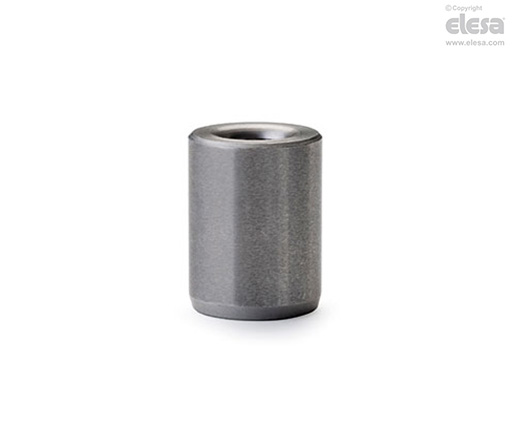

DIN 9845 Guide bushings
Steel
Main specifications
Material
Steel ST
Hardened steel (62±2 HRC).
Ground coupling surfaces d1 / d2.
General information
Features and applications
DIN 9845 guide bushings are characterised by strict dimensional tolerances and a hardened and ground surface. This makes them suitable for universal use in many applications.
In combination with an H7 tolerance housing hole, the external diameter of the n6 tolerance guide bushing is optimal.
On request
On request
Other d1 holes
