GN 784.1 Flanges
for mounting clamps with swivel ball joint GN 784
Specification
Specification
Stainless Steel AISI 304
matte, tumbled finish MT
Countersunk screw DIN 7991
Stainless Steel AISI 304
Half-length tapered groove pin DIN 8745
Stainless Steel AISI 304
Information
Information

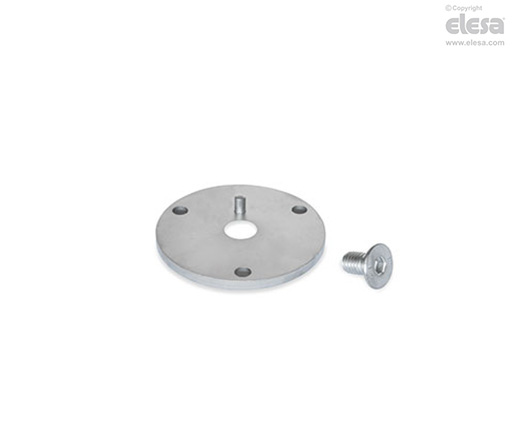

The GN 784.1 flanges are mounted from below onto the swivel ball joints GN 784 . A half-length tapered groove pin prevents any rotation. The flange enables the swivel ball joints to be mounted on the upper surface.
The d2 section with the three d3 drill holes is configured so that standard screws with washers can be used.
The countersunk screw is included separately.
