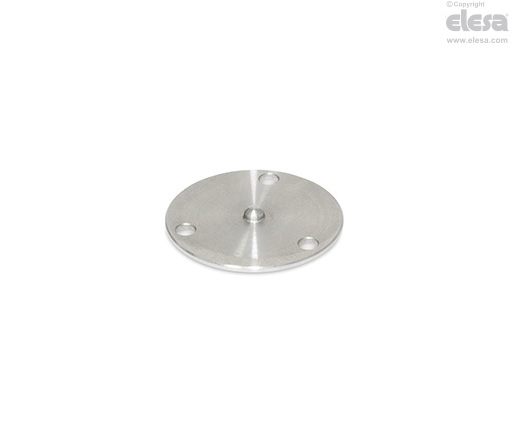

BEL-AP Adjusting plate

Ganter Norm GN 2277.1

for BEL-MF level bubbles, stainless steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

AISI 303 stainless steel.

General information

Features and applications

BEL-AP adjusting plates are used in combination with BEL-MF-A bull's eye levels.

The alignment of the bull's eye level with respect to the reference surface is reached when the fixing holes are positioned at 120°.

The adjusting pin allows the adjustment of the bubble acting as a pivot point.

By acting on the tightening of the screws, it will be possible to get the desired adjustment with respect to the mounting surface until obtaining a perfect positioning of the bubble in the circular marking of the window.
