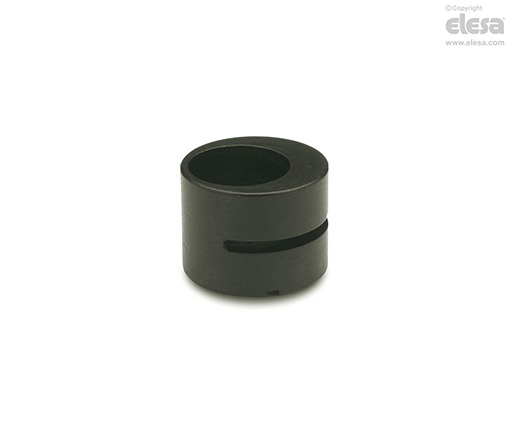

GN 715.2 Eccentric positioning bushings

for spring plungers, steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Black-oxide steel.

General information

Features and applications

GN 715.2 eccentric bushings are used to position correctly side thrust pins GN 715. By using the eccentric bushings, the thrust spring pin can be positioned very precisely to adapt to the tolerance of the piece to be machined.
