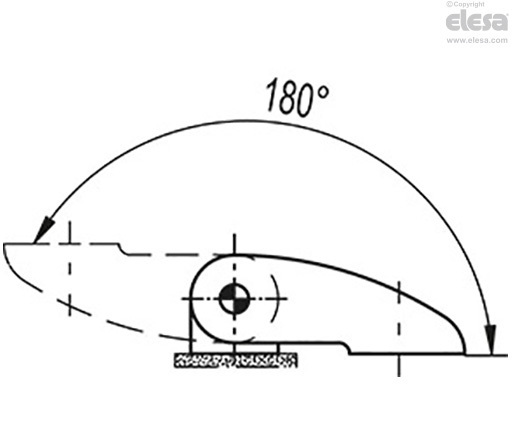

GN 138 Hinges for narrow jamb
Zinc alloy
Main specifications
Type
- Type A: with threaded blind bores
Die-cast zinc alloy ZD
epoxy resin coating
black, RAL 9005, matte finish SW
silver, RAL 9006, matte finish SR
Pin
AISI 303 stainless steel
General information
Features and applications
With their attractive design, hinges GN 138 are suitable for use in plant and machinery where a well-designed and stylish appearance is important.
The concealed and tamper-proof mounting from the rear highlights and enhances the special appearance of the hinge.
The hole spacings of the mounting holes m1 and m2 of the short version match typical hinges available on the market to allow use as a replacement hinge.
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
