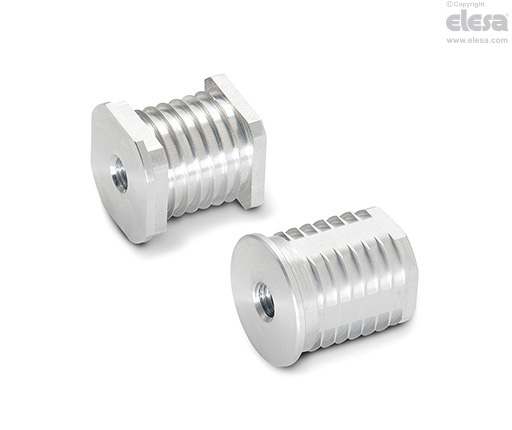

GN 992 Threaded hole end-caps for tubes

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Natural aluminium.

Standard executions

  • GN 992-D: for round tubes.
  • GN 992-V: for square tubes.
General information

Features and applications

GN 992 end-caps are suitable for the assembly of the threaded levelling elements on the tubes.

The external blades can compensate the internal diameter ± 0,5 mm tolerances of the tubes, both round and square.

They must be fitted to the tube ends by means of a mallet.

Other executions

Special executions on request

AISI 303 stainless steel end caps for tubes.
