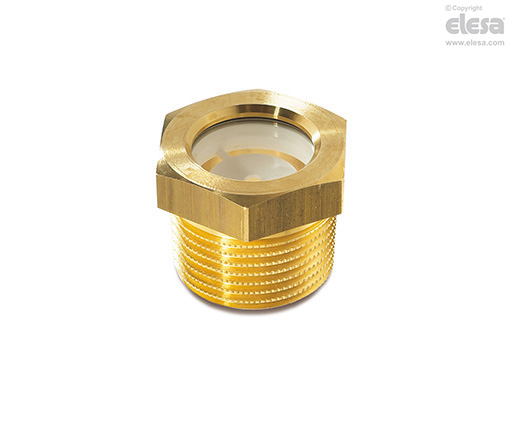

GN 743.8 (inch sizes) Oil level sight glasses for high temperatures
with conical threading, brass
Main specifications
Material
Brass.
Window
ESG safety glass.
Standard executions
- GN 743.8-A: with technopolymer (Polysulfone) contrast screen.
- GN 743.8-B: without contrast screen.
Maximum continuous working temperature
356°F (180°C).
General information
Features and applications
GN 743.8 oil level indicators can be used on pressurised oil tanks. The seal between the brass body and the ESG glass window is guaranteed by an O-ring in FKM type VITON®*.
The coupling of the conical threading (d2) with a right female threading (d4) will improve with the more threads that are in contact.
Generally to improve the tightness of this type of level indicators a sealing element like teflon ribbon is used.
* Registered trademark by DuPont Dow Elastomers.
