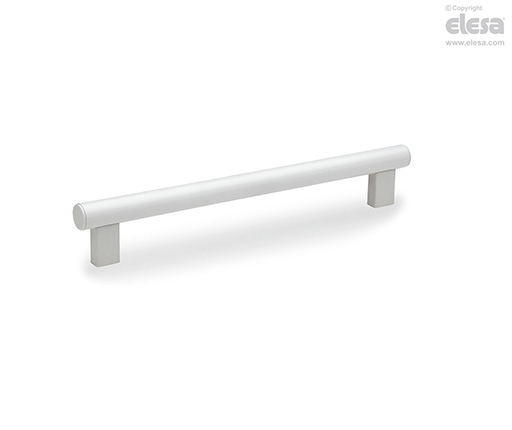

M.1066-CLEAN Tubular Handles
Technopolymer, aluminium, easy cleaning
Main specifications
Handle shanks
Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.
End caps
Polyamide based (PA) technopolymer, matte finish.
Mounting
Back mounting by means of special zinc-plated steel screws with threaded blind holes, fitted to the tube by means of steel nuts.
Standard execution
Aluminium tube, coating in white colour similar to RAL 9002, handle shanks and end caps in white colour similar to RAL 9002.
General information
Features and applications
M.1066 BM-CLEAN, thanks to its RAL 9002 white colour with glossy finish, is particularly suitable for applications on medical and hospital equipment and on food processing machines whose parts, for hygienic reasons, must be frequently cleaned. Its solid shape without cavities prevents unhealthy residues from depositing.
Technical data
Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
Other executions
Special executions on request
- Different lengths. For tube longer than 700 mm, an additional shank (at the middle of the length) can be supplied.
- Other colours.
