DIN 6321 Work-holding bolt

Steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Hardened steel (53+6 HRC).

Standard executions

  • DIN 6321-B: positioning element with cone-shaped head cylinder.
  • DIN 6321-C: positioning element with faceted head.
General information

Features and applications

DIN 6321-B is suitable to be used as a sliding surface, a clamp or as a levelling element.

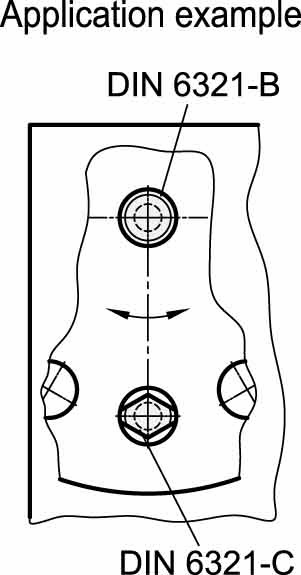

DIN 6321-C are generally used to compensate tolerances in distance between positioning holes, thanks to their design and faceted head.

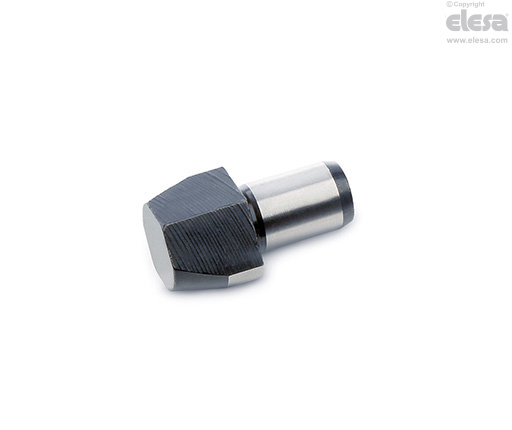

DIN 6321 - Positioning elementﾠ
