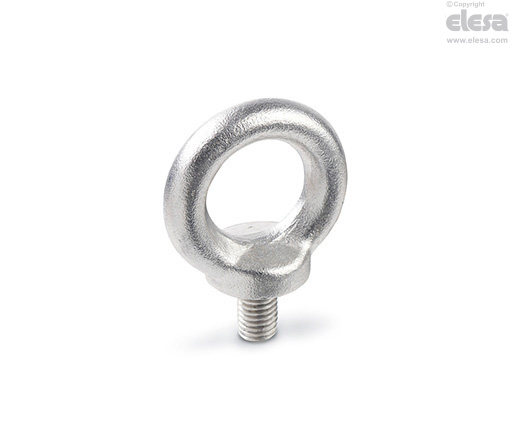

DIN 580 Lifting eyebolts

Features and applications

The use of DIN 580 lifting eye bolts must take place under the following conditions:

• the length of the thread of the assembly hole must be equal to the length of the thread of the pin of the eyebolt;

• the pin of the eyebolt must be fully screwed up to the stop on the mounting surface;

• the material of the mounting surface must have the same mechanical features of the eyebolt;

• do not exceed the maximum load values indicated in the table.

Further technical information available in "Operating instructions".

Special executions on request

Executions in C15 E zinc-plated steel (DIN 580-ST).
