PLX. Spherical knobs

Duroplast

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Phenolic based (PF) Duroplast, black or red colour, glossy finish.

Standard executions

  • PLX.: threaded blind hole.
  • PLX-B: brass boss, threaded blind hole.

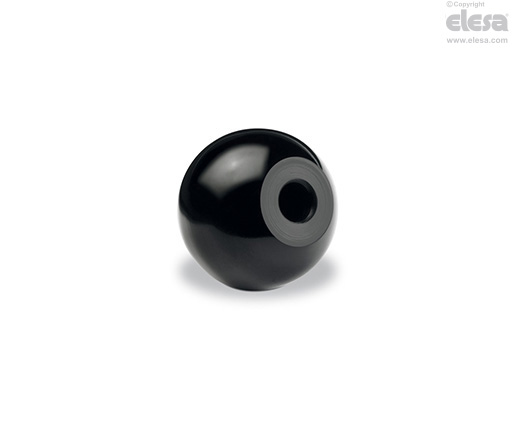

  • PLX-N: slightly cone-shaped plain blind hole. The elastic coupling, by press-fit assembly on h9 tolerance drawn stock bars, is not affected by vibrations and prevents the handle from slipping off (see Technical data).
Instructions of use

Assembly instructions  (PLX-N)

Fit the handle onto slight chamfered shaft end and push as far as possible by hand or by means of a small press. Alternatively it is possible to tap the handle with a plastic or wooden mallet until firmly in place. In this case we strongly recommend to use a cloth or other suitable soft material over the product to avoid any surface damage.
