GN 313-NI Indexing Plungers

Stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Threaded body

AISI 303 stainless steel.

Plunger

Nickel-plated AISI 303 stainless steel.

Suggested tolerance for matching hole = H7.

Locking nut

Stainless steel.

Knob

High-resilience polyamide based (PA) technopolymer, black colour, matte finish or AISI 303 stainless steel.

Standard executions

  • GN 313-A-NI: with knob, without locking nut.
  • GN 313-AK-NI: with knob, with locking nut.
  • GN 313-D-NI: without knob, without locking nut.

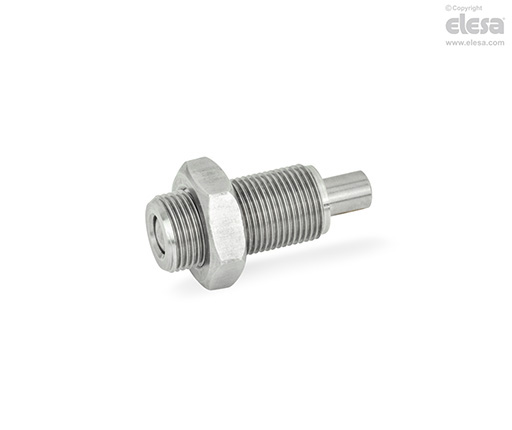

  • GN 313-DK-NI: without knob, with locking nut.
  • index 1: for plunger without internal threading.
  • index 2: for plunger with internal threading.
General information

Features and applications

GN 313-NI indexing plungers have fully retracted plunger out of gear.

By using the execution with internal threaded plunger (index 2), special devices may operate by means of threaded rods.

GN 313-D-NI and GN 313-DK-NI are without knob for operating by means of pneumatic cylinders, helical cams, etc.
