How Toggle Clamps Work: Clamping Force & Applications
Jul 3, 2023
Reading time: minutes
Toggle clamps are mechanical devices that exert a clamping force using a lever system. They consist of a handle, a linkage system, and a clamping mechanism. When the handle is squeezed, it operates the linkage system, which amplifies the applied force, resulting in a higher clamping force exerted on the workpiece. This force ensures a secure grip, preventing movement or slippage during operations.
Clamping Force and Locking Mechanisms
The clamping force of a toggle clamp is a crucial factor to consider. It determines the strength of the grip and the ability to hold a workpiece firmly. The force generated by a toggle clamp depends on the mechanical advantage provided by the linkage system, as well as the input force applied to the handle.
Locking mechanisms play a vital role in maintaining the clamping force. There are various types of locking mechanisms used in toggle clamps, including:

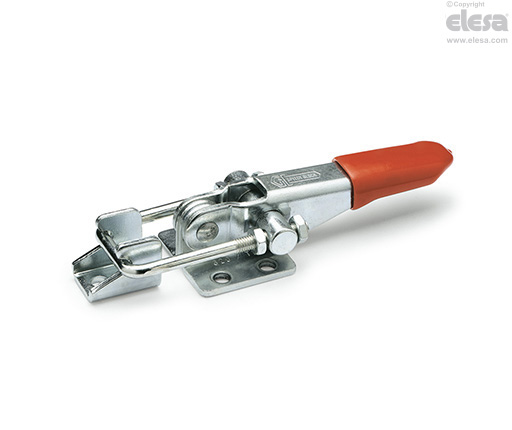

a) Latch Clamps: These clamps feature a latch that engages with a catch plate, ensuring a secure lock. Latch clamps are widely used in applications requiring quick release and easy adjustment.

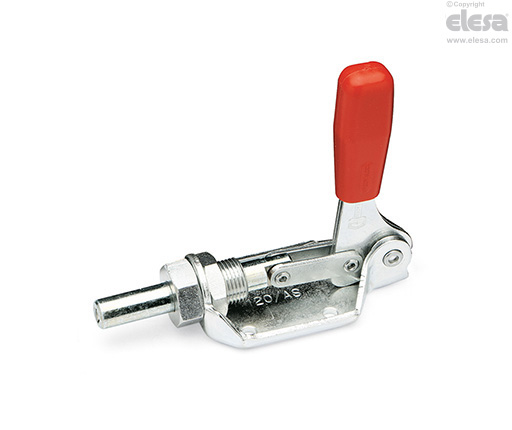

b) Push-Pull Toggle Clamps: These clamps utilize a push-pull motion to engage and disengage the clamping mechanism. They are often employed in situations where repetitive clamping is necessary.

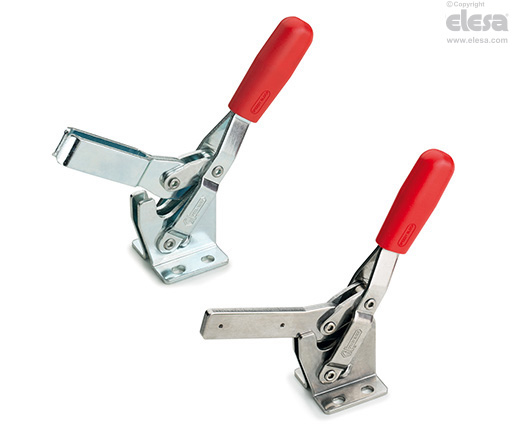

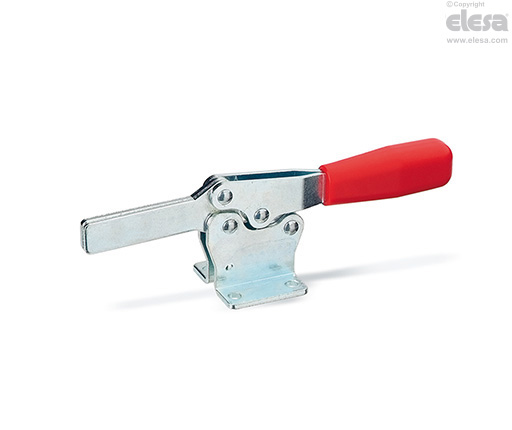

c) Vertical and Horizontal Toggle Clamps: Vertical toggle clamps exert clamping force in the vertical direction, making them suitable for applications where workpieces are secured from the top. Horizontal toggle clamps apply clamping force horizontally, ideal for holding workpieces against a fixed surface.
Material Selection and Construction
The construction of toggle clamps involves precise engineering to ensure optimal functionality. The assembly is designed to facilitate simple installation and ease of use, allowing for quick adjustments and reliable performance.
Toggle clamps are typically constructed using high-quality steel components. The use of high-grade steel ensures durability, resistance to chemical erosion, and the ability to withstand high temperatures. Galvanized steel is commonly employed to enhance the clamps' corrosion resistance and prolong their lifespan. Additionally, we employ the use of corrosion-resistant Inox steel in many of our clamp offerings.
We also carry a long-life series. What allows for this distinction is the unique material manufacturing process. The hot forged parts, as well as hardened and ground pivots and bushings, make these toggle clamps suitable for heavy loads and long operating life. Additionally, the clamping arm and control lever can be welded according to applications of use.
Versatility and Applications
Toggle clamps find widespread use in various industries due to their versatility. They are employed in carpentry for holding workpieces in place during cutting, drilling, or sanding operations. In welding, toggle clamps assist in securing materials together for precise and controlled joining. Additionally, they play a crucial role in manufacturing processes, such as rotational molding, where the even distribution of pressure is necessary for proper molding.

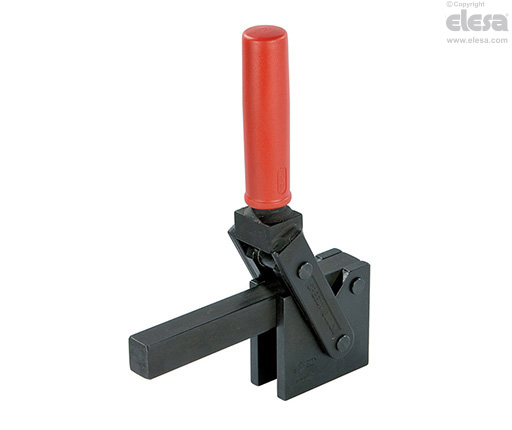

In applications requiring substantial clamping force and robustness, heavy-duty toggle clamps are employed. These clamps are designed to withstand higher loads and offer increased durability. Heavy-duty toggle clamps are commonly used in industries such as construction, metalworking, and automotive manufacturing.

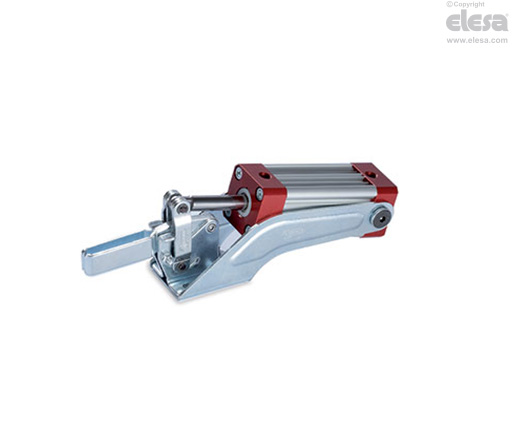

Pneumatic Toggle and Fastening Clamps
In addition to manual toggle clamps, there are pneumatic toggle and fastening clamps available that provide enhanced functionality and efficiency. These clamps utilize compressed air as a power source to exert clamping force, offering several advantages over their manual counterparts. With constant clamping force, the ability to actuate multiple devices, remote control capabilities, and versions equipped with magnetic cylinders, these clamps offer a wide range of applications across various industries. Whether it's the Performance Light Series, Heavy-Duty Series, or Reinforced Heavy-Duty Series, pneumatic toggle and fastening clamps deliver reliable and precise clamping solutions for professionals in need of efficient and automated clamping operations.
Constant FS Clamping Force Independent of the Operation
One significant advantage of pneumatic toggle and fastening clamps is their ability to maintain a constant clamping force regardless of the operation being performed. This ensures consistent and reliable clamping, reducing the risk of workpiece movement or slippage during operations. By relying on pneumatic power, these clamps can exert a high clamping force, making them suitable for applications that require strong and secure gripping.
Possibility of Actuating Several Devices at the Same Time
Pneumatic toggle and fastening clamps provide the capability to actuate multiple devices simultaneously. This feature allows for efficient and synchronized clamping of multiple workpieces or components, streamlining production processes and reducing assembly time. By actuating several clamps at once, manufacturers can achieve increased productivity and improved workflow.
Possibility of Actuating Various Points; Remote Control by Machines
These clamps offer the flexibility to actuate at various points, enabling secure clamping of irregularly shaped or complex workpieces. They can adapt to different workpiece geometries, providing a customized clamping solution. Moreover, pneumatic toggle and fastening clamps can be controlled remotely by machines, adding an element of automation to industrial processes. This allows for seamless integration into automated systems, enhancing overall efficiency and reducing manual labor.
Availability of Versions with Magnetic Cylinders
Several versions of pneumatic toggle and fastening clamps come equipped with magnetic cylinders. These cylinders enable precise positioning control without physical contact, ensuring accurate and repeatable clamping. They can detect the position of the clamp and provide electrical command impulses, facilitating automation and control in specific clamping situations. The magnetic cylinders enhance the overall performance and versatility of these clamps, making them suitable for a wide range of industrial applications.
Performance Light Series, Heavy-Duty Series, and Reinforced Heavy-Duty Series
The Performance Light Series is designed for lighter-duty applications, offering compact and lightweight clamps suitable for smaller workpieces. The Heavy-Duty Series provides robust clamps capable of handling higher clamping forces and heavier workpieces. For the most demanding applications, the Reinforced Heavy-Duty Series offers extra durability and strength, ensuring reliable clamping performance under extreme conditions. These different series provide options for professionals to select the pneumatic toggle and fastening clamps that best suit their specific needs.
Toggle clamps are essential tools that provide a secure grip and clamping force for various industrial applications. Understanding their inner workings, including clamping force, locking mechanisms, and construction materials, allows professionals to choose the appropriate toggle clamp for their specific needs. With their versatility, ease of use, and durability, toggle clamps continue to be an indispensable asset in numerous industries, ensuring precise and safe operations. In conclusion, manual and pneumatic toggle and fastening clamps provide advanced features and capabilities that enhance clamping efficiency and versatility.
