MPG-R-AZ Guide rail clamps

for GLD-AZ side guides, steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Zinc-plated steel.

Standard executions

  • MPG-R-AZ-1: for one-track roller side guides.
  • MPG-R-AZ-2: for two-track roller side guides.
  • MPG-R-AZ-3: for three-track roller side guides.

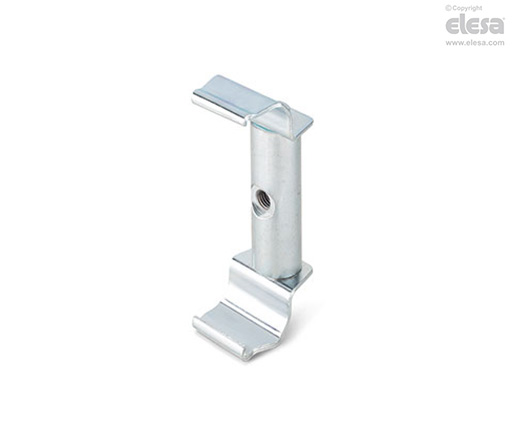

  • MPG-R-AZ-4: for four-track roller side guides.
General information

Features and applications

The MPG-R-AZ guide rail clamps are used for fixing the GLD-AZ side guides.

They are supplied in kits including clamps, pin, screw and nut (MPG-R-AZ-1), or clamps, screws and spacer (MPG-R-AZ-2 / MPG-R-AZ-3 / MPG-R-AZ- 4).

Supplied unassembled

Accessories on request

Accessories on request

MPG-P: fixing pin (419513 MPG-P16-M10x17) for use in combination with MPG-R-AZ-2 / MPG-R-AZ-3 / MPG-R-AZ-4 clamps.
