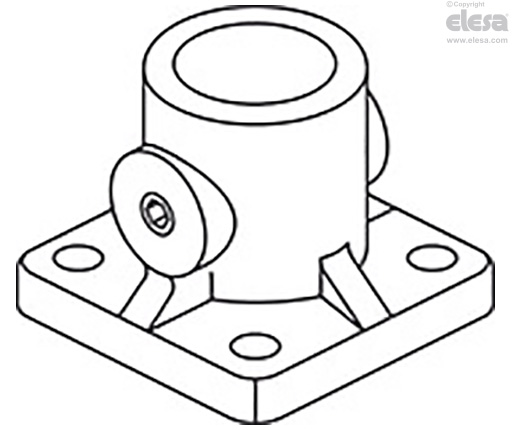

GN 162.8 Connecting clamp bases

With grub screw, aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Main specifications

Aluminum

  • Epoxy resin coating,

black, RAL 9005, textured finish     SW

  • Plain, matte shot-blasted     BL

Grub screw DIN 913

Stainless Steel AISI 304

General information

Features and applications

The clamping bore of base plate connector clamps GN 162.8 is not machined and designed for GN 990 .

At the screw location z a grub screw reduces the bore cross-section for clamping.

GN 162.8 - Base plate connector clamps
