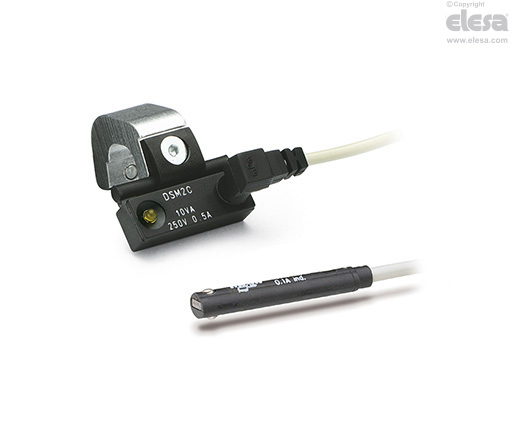

PSW. Limit switches

with holding bracket




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Electrical features

  • Voltage range: 3÷110 V AC/DC
  • Voltage drop LED: 3 V
  • Temperature range: -20°C +85°C
  • Life expectancy: (operations) 107
  • Protection classification: IP 67
  • Cable length: 2.5 mt
General information

Features and applications

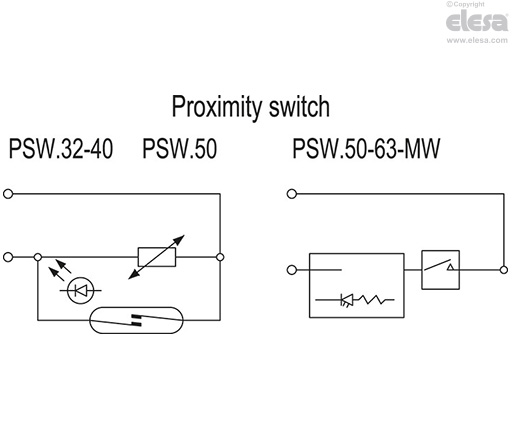

PSW. limit switches detect magnetic fields through electrical impulses. The pneumatic magnetic series features tools equipped with magnetic cylinders that deliver drive and/or control electrical impulses with the limit switches provided. As they feature luminous leds, the min. use voltage is 3V and voltage drop will be 3V each if they are series connected.

Using a very long connection cable (over 5 m) could impact proper functioning of the sensor due to the high capacity value which is directly proportional to the cable length. In such conditions, it is recommended to use an inductor to eliminate the effects of cable capacity.

In direct current circuits, always connect the brown wire to the positive pole.

It is recommended to keep electrical cables and large ferrous masses at due distance as the latter could disturb the sensor due to the effects of mutual induction.

Sensors can detect signals at a speed of 1 m/s.

Using a holding bracket, they can be positioned all along the cylinder stroke.
