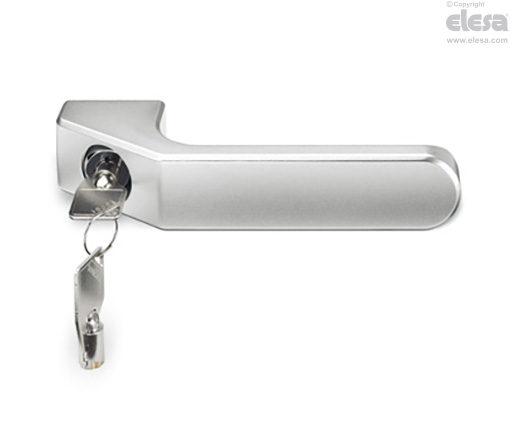

RH-FG9 Handles with lock

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

  • RH-FG9-11: ground anodised aluminium, natural colour, semi-matte finish.
  • RH-FG9-14: ground anodised aluminium, black colour, semi-matte finish.

Stator and rotor

Chrome-plated zinc alloy.

Nut

Chrome-plated zinc alloy (M19x1).

Closing lever (to be ordered separately)

Zinc-plated steel, 3 mm thickness. Assembly by means of zinc-plated steel hexagonal nut and spring washer, included in the supply.

Two keys

Nickel-plated brass cylinder, nickel-plated steel handle. Removable in two positions at 90°.

Rotation

90°.

RH-FG9 - Handles with lock
Other executions

Special executions and accessories

Levers in different colours.
