GN 181 Handle fastening kit

Zinc alloy



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Die-cast zinc alloy.

Standard executions

Zinc-plated steel countersunk head screws for handle fastening.

  • GN 181-SR: epoxy resin coating, RAL 9006 grey colour, matte finish.
  • GN 181-SW: epoxy resin coating, RAL 9005 black colour, matte finish.
General information

Features and applications

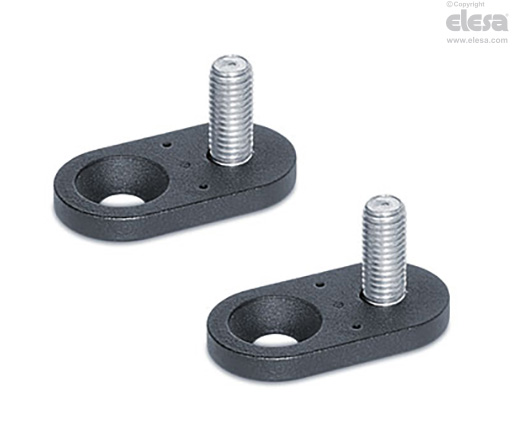

GN 181 handle fastening kit is composed of 2 plates and 2 countersunk head screws.

A suitable positioning of the fixing plates of the handle allows to realise compensation of different hole centre distances.

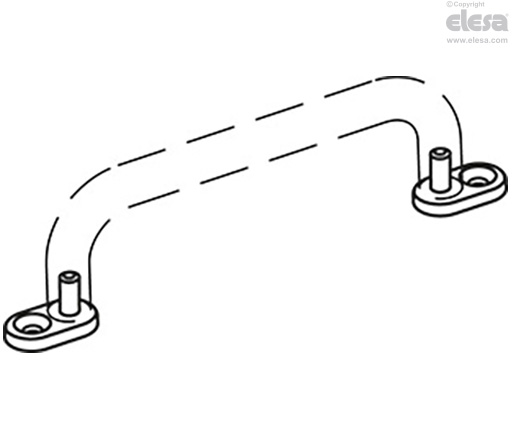

GN 181 fastening kit allows to turn a handle with a threaded blind hole for rear mounting into a handle for front mounting.

GN 181 - Handle fastening kit
