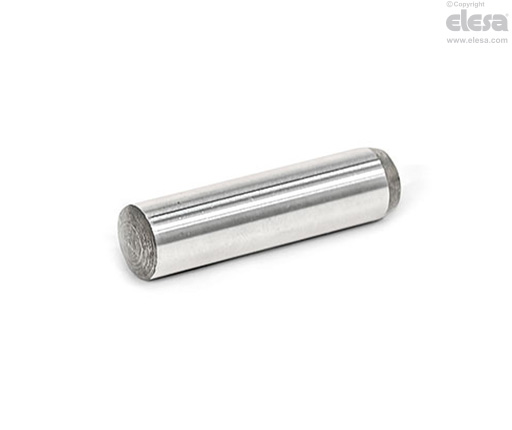

DIN 6325 Dowel Pins
Steel
Main specifications
Material
Steel ST
- Hardened (HRC 60 ±2)
- Fit dimension d ground, plain finish
Tolerance class
- M6: ISO Fundamental Tolerance m6 (acc. to DIN ISO 286-2)
Information
Information
Dowel pins DIN 6325 connect, secure and position machine parts.
They are generally used in conjunction with through holes. The centering step facilitates with pressing in the part.
The dimensions do not conform to ISO 8734 but can partially replace these. In combination with a location hole H7 a transition fit can be achieved.
On request
On request
Stainless steel
