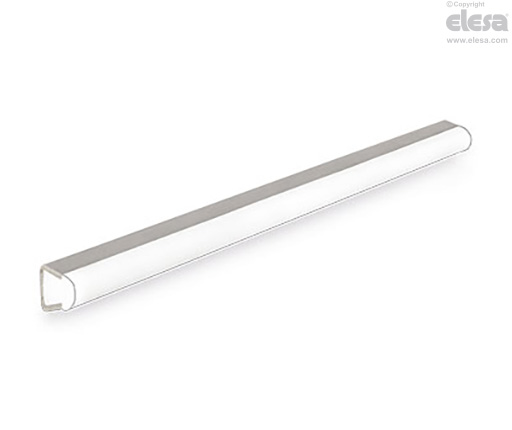

GLT Linear guide rail

Round profile R7, technopolymer, stainless steel




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Guide profile

Polyethylene based (HMWPE) technopolymer, natural colour.

Bracket

AISI 304 stainless steel

General information

Features and applications

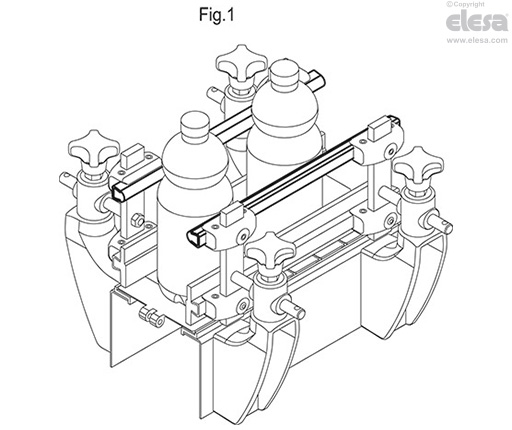

GLT guide rail for the side guide of products with a good stability on conveyor belts (Fig.1), without leaving traces on the containers.

High molecular weight polyethylene (HMWPE) has a high wear resistance; it is particularly suitable for high-speed movements due to its low coefficient of friction.

Supplied in bars of 1500 or 3000 mm length.

GLT - Linear guide rail
Other executions

Special executions on request

Guide rails in blue colour RAL 5005.

Accessories

Accessories on request

Guide rail clamps MPG-T, MPG-2T, MPG-T-S.
